Function Introduction
-
Multiple document recognition
Supports for reading e-passports of more than 200 countries in line with the global ICAO DOC 9303 standard, paper passports and more than 80 kinds of documents including domestic and foreign driver's licenses, visas, Hong Kong and Macao identity cards, home visit permits, Taiwan compatriot certificates, and so on
-
Support document authenticity checking
Supports image data checking, OCR data checking, chip data checking and cross-checking.
-
Multiple Reading Modes
Offers three reading modes: OCR recognition via photo, card reading only, and a combination of photo and card reading.
-

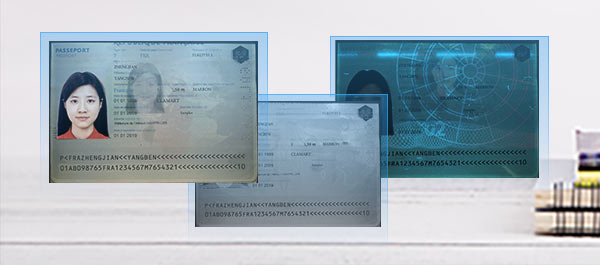

Multi-Spectral Imaging
Supports the output of visible light, infrared, and ultraviolet images.
-
Extract Personal Photos
Capable of extracting personal photos from both the document surface and embedded chips.
-
Automatic Triggering and Categorization
Automatically identifies and categorizes multiple document types, reading and uploading document information into the system.
-
Barcode/QR Code Recognition
Support for recognition of barcodes and QR codes (including cell phone QR code), through the light-sensitive sensor technology, to effectively avoid cell phone NFC mistakenly triggered by other apps to affect the barcode reading
-
Fast and Accurate Document Reading
Achieves a recognition accuracy rate of 99.8% with a communication rate of up to 848 Kbps.
-
Support Secondary Development
Offers SDKs for Windows, Linux, and Android for secondary development, along with examples in languages such as VC, VB, C#, and Java.
-
Anti-Glare Interference
Removes anti-counterfeiting film and reflective interference, ensuring accurate document color reproduction.
-
System Compatibility and Versatility

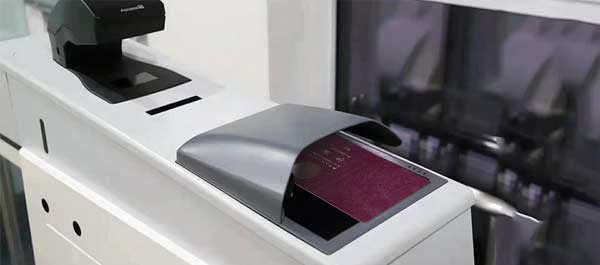

Can be embedded into various self-service devices such as security gates, ticketing machines, and VTMs. It is widely used in hotels, travel agencies, visitor management, airports, high-speed rail stations, customs, diplomacy, public security, and exhibitions.
Product Superiority
Fine design, more compact appearance
- Compact and thin, thickness is only 6.8cm, professional high borosilicate glass, friction resistance, strong stability, equipped with two kinds of accessories, the bar and adjustable or removable damping shade, to adapt to different lighting conditions.
Support Xinchuang PC Operating System
- The passport reader supports chips such as Feiteng, Longxin and Zhaoxin, as well as domestic systems such as Kirin system and Tongxin UOS. The price is independent and controllable
Independently Developed and Secure
- OCR document recognition, embedded software development, structural design, and RFID card reading adjustment are all independently developed, ensuring security and reliability.
Anti-Metal and Signal Interference
- Dual antenna design prevents signal and metal interference, making it suitable for integration into various metal devices
Flexible Reading Mode Configuration
- Different reading modes allow for adjustable card reading speeds, text display, and image information, making it adaptable to various scenarios.
High-Definition Imaging
- The passport reader features 5 million pixels and achieves a physical resolution of 500 DPI, eliminating the effects of light spots with dual light sources.
Multiple Models
- Includes several models, such as SR690, SR580, SR460, SR240, and SR190, catering to the needs of different customer groups.
High-speed transmission, rich interface
- Equipped with USB and Type-C interfaces, offering high-speed data transfer capabilities. The compact Type-C interface is highly protective, saving device space and ensuring stability and durability during use.
Application Scenarios
- Digital Currency
- Customs
- Immigration Control
- Banking
- Airports
- High-Speed Rail
-
Digital Currency
Integrated into digital currency exchange machines, enabling domestic and international users to use second-generation IDs, passports, and other identification documents for real-name authentication. This supports currency exchange options, including foreign bank cards to RMB or NFC cards, and digital currency accounts, facilitating easier use for foreign guests while preventing counterfeit document exchanges.
-
Customs
Helps customs officers verify passport information quickly and accurately during luggage inspections, speeding up the process and reducing manual labor.
-
Immigration Control
The device can automatically recognize and classify various documents, improving the efficiency and user experience during immigration processing.
-
Banking
Integrates into banking self-service terminals, enhancing customer identity verification and simplifying processes such as account opening and transactions.
-
Airports
Utilized in self-service check-in counters, this device speeds up passenger processing by quickly recognizing boarding passes and identity documents.
-
High-Speed Rail
Installed in self-service ticketing machines at high-speed rail stations, it enables domestic and international passengers to efficiently purchase or collect tickets using various documents, including ID cards, passports, and military certificates.
Case
-
- How does Traditional Hotels Transform into Smart Hotels
-
- The Combination and Verification of Person and Document in the Hotel
-
- ID Card Reader Increases Hotel Occupancy
Product parameters
-

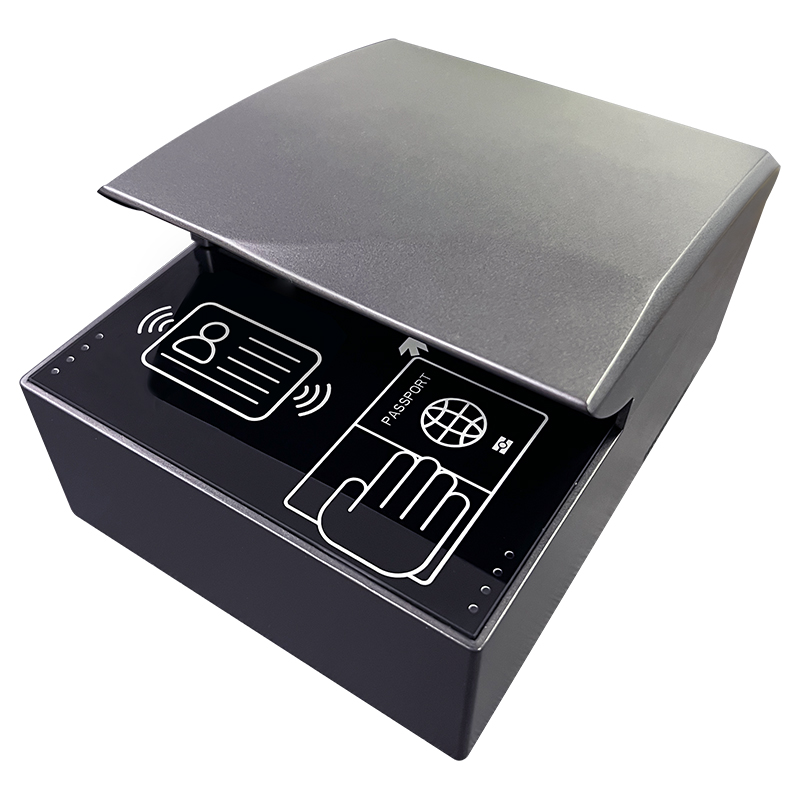

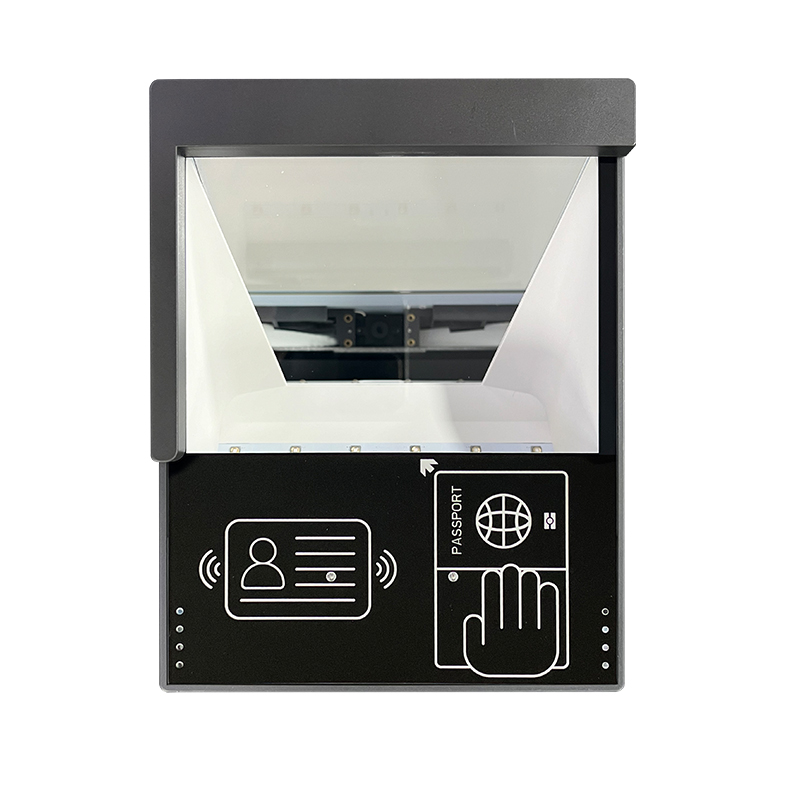

TH-SR 190 Passport Reader
DetalisRFID Reading OCR Processing Auto-Trigger Barcode Recognition Light type Supported Resolutions - √ √ - Visible light, infrared light 2048×1536、2592×1944 Parameter name
Specific description
light source
Multi-band light source: including visible light, infrared 850nm;
anti-glare function
Ensure that the color of the document is not distorted and remove the effects of security films and reflections
image acquisition
Capture area 127*88 mm, Sensor CMOS 5 megapixel (2592*1944), Resolution 500 DPI, Capable of taking 24-bit clear color photos of full-page passport document data pages
Image Saving
Images captured under visible (white), infrared, and ultraviolet light can be saved in BMP, PNG, or JPEG formats without reflective light spots; electronic headshots can also be saved from chip-enabled IDs.
Document Image Rotation
Supports automatic document rotation function;
Can make any direction into the documents, image acquisition after the rotation of the corrected are the positive direction of the displayPortrait Cropping
Cropped image with face and head area intact, non-photographic areas are small in the image, and the photo is free of photographic occlusion
Multi-document recognition
Support ICAO9303 standard passport, visa and other travel documents image capture and information recognition;
Support ISO 14443 Type A/B type card readingMachine Readable Zone (MRZ) Recognition
Reads all ICAO-compliant machine-readable travel documents, as well as non-ICAO-compliant documents issued in China.
And parses machine readable code (MRZ) information.extended function
Support to enable the document to take out, callback mode, refused to recognize the function;
Support to enable security feature detection, RFID card reading settings and other expanded settings;
Support the removal of complex background settings, resolution settingsoperating method
Card documents can be triggered to be read anywhere in the reading window;
Machine-readable code pages are skewed or reversed without affecting the reading results.
protection class
IP50
data communication
Support (including but not limited to) PC/SC, compatible with USB2.0, USB3.0 interface;
Support USB interface expansion, can be connected to other USB devices on the devicecommunications rate
Supports up to 848 Kbps
automatic trigger
Supports document reading triggered by auto-sensing of documents
automatic classification
The system automatically distinguishes between types of documents
indicator light
Contains a power indicator, a ready indicator, an error indicator, and a warning indicator;
Supports customization of indicator working status
buzzers
Built-in Buzzer
software development kit
Provide software development kits for Windows system for secondary development;
Provide in the form of Dll, OCX, WebSocket, VC, VB, C#, Java and other languages calling routines; provide Linux system, Android 32-bit and 64-bit SDK development kit.
Provide calling routines in VC, VB, C#, Java and other languages; Provide SDK development packages for Linux and Android in 32-bit and 64-bit.power supply
Use external standard power adapter, Power adapter specification;
Input AC 100~240V 50-60Hz 0.8A; Output DC 12V 2Aoperating environment
Humidity: 20% to 95% (no condensation at RH); Temperature: -10º to 50ºC operating; -20º to 50ºC storage
operating system
Compatible with Windows® 2000-SP4, Windows® XP.
Windows® Vista, Windows® 7 and Windows® 8, Windows® 10 and Linux® systems.
Windows® 10 and Linux® systems; supports domestic operating systems: Kirin and Unicom.Support for domestic CPUs
Supports CPUs such as Longchip, MegaCore, Fetion, etc.
Physical Specifications
Appearance size: 190.08* 143* 68.25mm Length, width and height
Service & Maintenance
Provide 365*24 online technical support by phone, e-mail and internet; one-year warranty for hardware and lifelong maintenance.
-

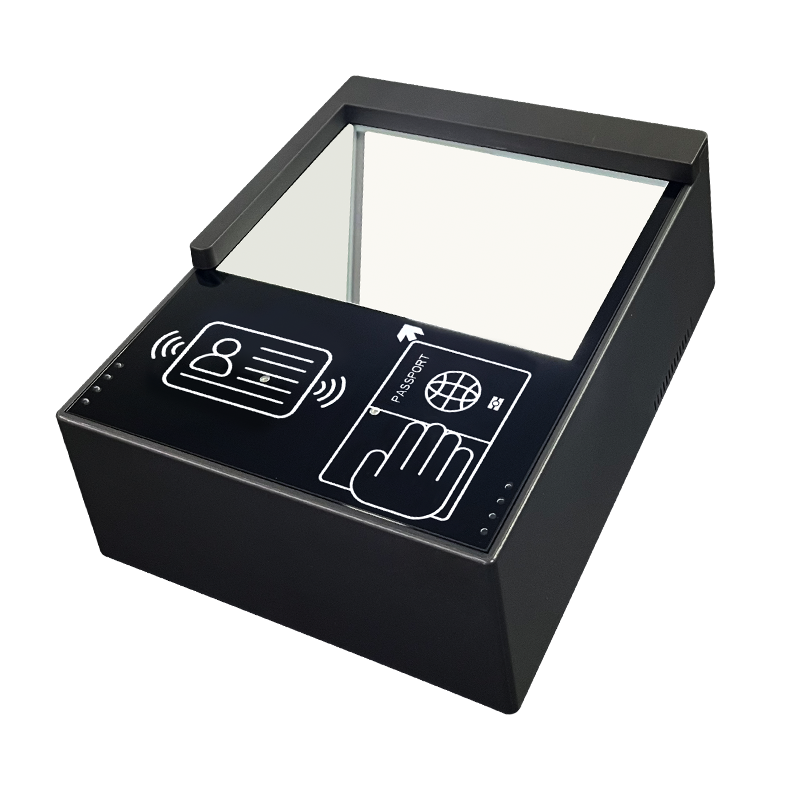

TH-SR460 (B) Passport Reader
DetalisRFID Reading OCR Processing Auto-Trigger Barcode Recognition Light type Supported Resolutions √ √ √ √ Visible light, infrared light 2048×1536、2592×1944 Parameter name
Specific description
light source
Multi-band light source: including visible light, infrared 850nm;
anti-glare function
Ensure that the color of the document is not distorted and remove the effects of security films and reflections
image acquisition
Capture area 127*88 mm, Sensor CMOS 5 megapixel (2592*1944), Resolution 500 DPI, Capable of taking 24-bit clear color photos of full-page passport document data pages
Image Saving
Images captured under visible (white), infrared, and ultraviolet light can be saved in BMP, PNG, or JPEG formats without reflective light spots; electronic headshots can also be saved from chip-enabled IDs.
Document Image Rotation
Supports automatic document rotation function;
Can make any direction into the documents, image acquisition after the rotation of the corrected are the positive direction of the displayPortrait Cropping
Cropped image with face and head area intact, non-photographic areas are small in the image, and the photo is free of photographic occlusion
Multi-document recognition
Support ICAO9303 standard passport, visa and other travel documents image capture and information recognition;
Support ISO 14443 Type A/B type card readingElectronic passport reader
Support basic access control (BAC, PACE) for e-passport;
Support passive authentication (PA) of e-passport to verify the authenticity of document information;
Support e-Passport Active Authentication (AA) to verify the authenticity of the document chip.Machine Readable Zone (MRZ) Recognition
Reads all ICAO-compliant machine-readable travel documents, as well as non-ICAO-compliant documents issued in China.
And parses machine readable code (MRZ) information.extended function
Support to enable the document to take out, callback mode, refused to recognize the function;
Support to enable security feature detection, RFID card reading settings and other expanded settings;
Support the removal of complex background settings, resolution settingsoperating method
Card documents can be triggered to be read anywhere in the reading window;
Machine-readable code pages are skewed or reversed without affecting the reading results.
protection class
IP50
data communication
Support (including but not limited to) PC/SC, compatible with USB2.0, USB3.0 interface;
Support USB interface expansion, can be connected to other USB devices on the devicecommunications rate
Supports up to 848 Kbps
automatic trigger
Supports document reading triggered by auto-sensing of documents
automatic classification
The system automatically distinguishes between types of documents
indicator light
Contains a power indicator, a ready indicator, an error indicator, and a warning indicator;
Supports customization of indicator working status
buzzers
Built-in Buzzer
software development kit
Provide software development kits for Windows system for secondary development;
Provide in the form of Dll, OCX, WebSocket, VC, VB, C#, Java and other languages calling routines; provide Linux system, Android 32-bit and 64-bit SDK development kit.
Provide calling routines in VC, VB, C#, Java and other languages; Provide SDK development packages for Linux and Android in 32-bit and 64-bit.power supply
Use external standard power adapter, Power adapter specification;
Input AC 100~240V 50-60Hz 0.8A; Output DC 12V 2Aoperating environment
Humidity: 20% to 95% (no condensation at RH); Temperature: -10º to 50ºC operating; -20º to 50ºC storage
operating system
Compatible with Windows® 2000-SP4, Windows® XP.
Windows® Vista, Windows® 7 and Windows® 8, Windows® 10 and Linux® systems.
Windows® 10 and Linux® systems; supports domestic operating systems: Kirin and Unicom.Support for domestic CPUs
Supports CPUs such as Longchip, MegaCore, Fetion, etc.
Physical Specifications
Appearance size: 190.08* 143* 68.25mm Length, width and height
Service & Maintenance
Provide 365*24 online technical support by phone, e-mail and internet; one-year warranty for hardware and lifelong maintenance.
-
TH-SR580 (B) Passport Reader
DetalisRFID Reading OCR Processing Auto-Trigger Barcode Recognition Light type Supported Resolutions √ √ √ √ Visible light, infrared light, ultraviolet light 2048×1536、2592×1944 Parameter name
Specific description
light source
Multi-band light source: including visible light, infrared 850nm, UV 365nm;
UV exposure intensity can be adjustedanti-glare function
Ensure that the color of the document is not distorted and remove the effects of security films and reflections
image acquisition
Capture area 127*88 mm, Sensor CMOS 5 megapixel (2592*1944), Resolution 500 DPI, Capable of taking 24-bit clear color photos of full-page passport document data pages
Image Saving
Images captured under visible (white), infrared, and ultraviolet light can be saved in BMP, PNG, or JPEG formats without reflective light spots; electronic headshots can also be saved from chip-enabled IDs.
Document Image Rotation
Supports automatic document rotation function;
Can make any direction into the documents, image acquisition after the rotation of the corrected are the positive direction of the displayPortrait Cropping
Cropped image with face and head area intact, non-photographic areas are small in the image, and the photo is free of photographic occlusion
Multi-document recognition
Support ICAO9303 standard passport, visa and other travel documents image capture and information recognition;
Support ICAO9303 standard e-passport card reading;
Support ISO 14443 Type A/B type card reading.Electronic passport reader
Support basic access control (BAC, PACE) for e-passport;
Support passive authentication (PA) of e-passport to verify the authenticity of document information;
Support e-Passport Active Authentication (AA) to verify the authenticity of the document chip.Machine Readable Zone (MRZ) Recognition
Reads all ICAO-compliant machine-readable travel documents, as well as non-ICAO-compliant documents issued in China.
And parses machine readable code (MRZ) information.extended function
Support to enable the document to take out, callback mode, refused to recognize the function;
Support to enable security feature detection, RFID card reading settings and other expanded settings;
Support the removal of complex background settings, resolution settingsoperating method
Card documents can be triggered to be read anywhere in the reading window;
Machine-readable code pages are skewed or reversed without affecting the reading results.
protection class
IP50
data communication
Support (including but not limited to) PC/SC, compatible with USB2.0, USB3.0 interface;
Support USB interface expansion, can be connected to other USB devices on the devicecommunications rate
Supports up to 848 Kbps
automatic trigger
Supports document reading triggered by auto-sensing of documents
automatic classification
The system automatically distinguishes between types of documents
indicator light
Contains a power indicator, a ready indicator, an error indicator, and a warning indicator;
Supports customization of indicator working status
buzzers
Built-in Buzzer
software development kit
Provide software development kits for Windows system for secondary development;
Provide in the form of Dll, OCX, WebSocket, VC, VB, C#, Java and other languages calling routines; provide Linux system, Android 32-bit and 64-bit SDK development kit.
Provide calling routines in VC, VB, C#, Java and other languages; Provide SDK development packages for Linux and Android in 32-bit and 64-bit.power supply
Use external standard power adapter, Power adapter specification;
Input AC 100~240V 50-60Hz 0.8A; Output DC 12V 2Aoperating environment
Humidity: 20% to 95% (no condensation at RH); Temperature: -10º to 50ºC operating; -20º to 50ºC storage
operating system
Compatible with Windows® 2000-SP4, Windows® XP.
Windows® Vista, Windows® 7 and Windows® 8, Windows® 10 and Linux® systems.
Windows® 10 and Linux® systems; supports domestic operating systems: Kirin and Unicom.Support for domestic CPUs
Supports CPUs such as Longchip, MegaCore, Fetion, etc.
Physical Specifications
Appearance size: 190.08* 143* 68.25mm Length, width and height
Service & Maintenance
Provide 365*24 online technical support by phone, e-mail and internet; one-year warranty for hardware and lifelong maintenance.
